Characteristics and uses of acetate cloth tape

Many people may have heard of acetate cloth tape for the first time, and they may be unfamiliar with this tape. The following editor will introduce the functions of this tape.

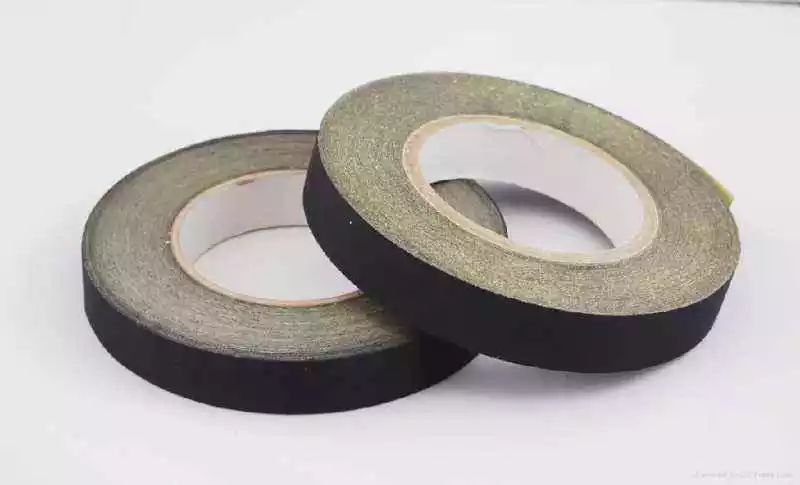

640.  jpg

Characteristics and uses of acetate cloth tape

Used for interlayer insulation and bundling of transformers, wires, etc., mobile phones, computers, electronics.

The above tapes can all be used for electrical insulation. The insulation grade of 6701 can reach Class B or above. 6701 has been approved by UL, and the thickness ranges from 0.05mm to 0.22mm. Acetate cloth tape is divided into rubber type acetate cloth and acrylic type acetate cloth according to the type of adhesive. According to the use requirements of different electrical products, flame retardants need to be added and the base material must be flame retardant. If the finished product can achieve self-extinguishing (fire prevention) when leaving fire, it is called “flame retardant acetate cloth”; no flame retardant is added. Products containing flame retardants will ignite upon ignition and cannot automatically extinguish. They are “non-flame-retardant acetate cloth tape”. Generally speaking, the acetate cloth base material and adhesive itself are not fireproof and require special processing to achieve the “flame retardant” effect.

Because the acetate cloth base material has strong moisture absorption and breathability, good resilience, easy washing and drying, no static electricity and hair balls, and excellent aging resistance, it can last more than 15 years. The acetate cloth tape processed with acetate cloth base material has the characteristics of high temperature resistance, anti-aging, soft and conformable, good formability, easy to punch, easy to unwind, acid, alkali, mildew resistance, etc., and has excellent insulation performance. Compared with general glass fiber cloth and glass cloth, it is widely used in televisions, transformers, air conditioners, computers and other manufacturing fields.

As environmental awareness increases in countries around the world, customers continue to put forward new requirements for the environmental protection of acetate cloth. So far, acetate cloth tape can meet the requirements of Sony SS-00259 standard in the electronics industry, meet the EU ROHS requirements, meet the EU REACH requirements, meet the phthalate-free 6P requirements, and meet the EU halogen-free requirements, and the product has passed UL certified.
