Fiberglass cloth

Fiberglass cloth

Glass fiber cloth is made of high-quality alkali-free fiber as raw material, spun and woven. According to different usage conditions, the yarn is expanded or not expanded in advance to adapt it to various usage conditions. The maximum operating temperature can reach 550°C, and it has good electrical insulation, thermal insulation and mechanical properties.

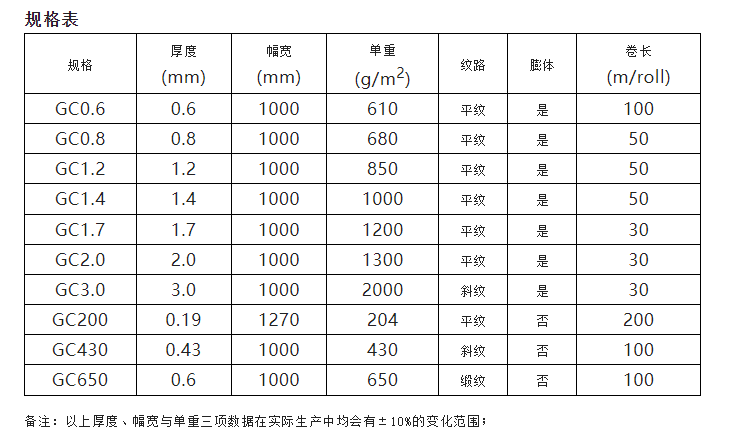

  QQ picture 20230113214037.png

Main performance

Used in environments ranging from -70°C to 1000°C, and can withstand instantaneous high temperatures;

Resistant to ozone, oxidation, light and climate aging;

High strength, high modulus, low shrinkage, no deformation;

Good thermal insulation performance;

When the working temperature is exceeded, there is still a certain residual strength;

Corrosion resistance;

5ff47b6709832.  jpg

Application scope

High temperature atmospheric dust removal

Used for reinforcing materials that require high personal safety protection and mechanical properties

Fire blanket base fabric

Welded curtain base fabric

Various coated base fabrics

Boiler insulation and pipe wrapping

Used in ship construction and repair

Packaging: Each roll of cloth is rolled on a paper tube and wrapped with bubble wrap and a carton.

Introduction

Fiberglass Cloth is produced by high quality fiberglass fiber and woven from yarn. It can be used for different environment according to the pre-texturized or not. The working temperature is 550°C (1020°F), and has good electrical insulation properties, thermal insulation properties and mechanical properties.

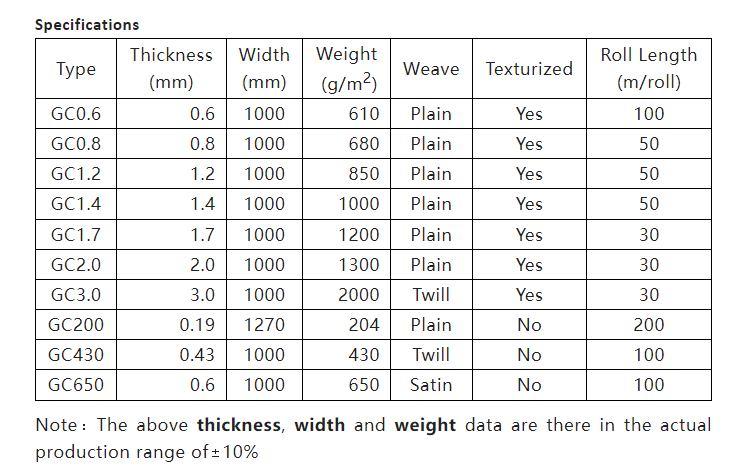

  QQ picture 20230113214046.png

Main Performance

Could be used in the environment of -70°C~1000°C and can be instantaneous high temperature resistance;

Resistance to ozone, oxidation, light and weathering;

High strength, high modulus, low shrinkage, no deformation;

Good thermal insulation;

There is still some residual strength when operated over the working temp;

Resistance to corrosion;

Application

Reinforcing material for demanding personal security and mechanical properties;

Basic cloth for fire curtain, welding curtain and coating cloth;

The boiler insulation and pipe bandaging;

Engineering Technology Co., Ltd. is a technology-based company established by a group of technicians who love the cause of thermal insulation, sealing and fire protection. The core technical team, with masters of engineering and masters of business administration, all graduated from well-known domestic universities and have well-known talents in the industry. The experience of state-owned enterprises, foreign enterprises and private enterprises.

In line with the corporate philosophy of “doing fire protection is to be conscientious, and doing thermal insulation is to do meritorious deeds”, the company is fully equipped with all equipment from raw materials to finished products and even turnkey projects, and is also equipped with professional laboratories for daily experiments and testing. . Continuously improve existing products, improve production processes, and develop new products to meet new needs.

59bb315ebdcee.  jpg

The product range is wide – designing industrial thermal insulation materials, insulation materials, sealing materials, building fireproof materials, etc.; there are many varieties – from yarn, cloth, belts, ropes, supplemented by coatings such as vermiculite, graphite, silica gel, acrylic acid, etc. There are thousands of varieties including heat shields, thermal insulation quilts, fireproof covers, fireproof rolling shutters, smoke barrier vertical walls, fast rolling shutter doors, etc.; strong adaptability – from meeting domestic standards to meeting international standards, from existing products to New products are developed at any time according to customer requirements.
