The role of steel plates

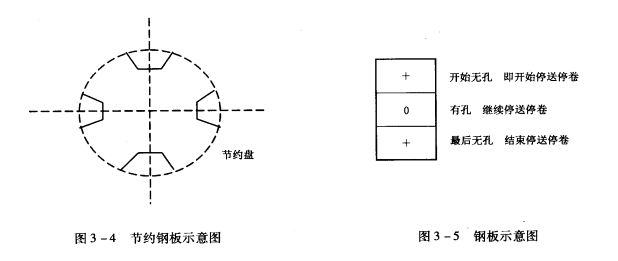

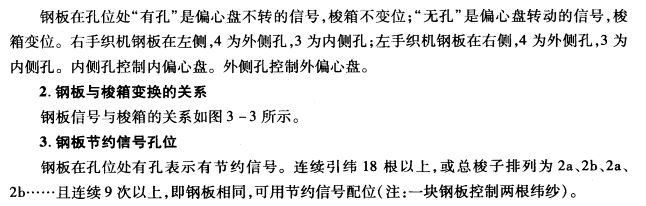

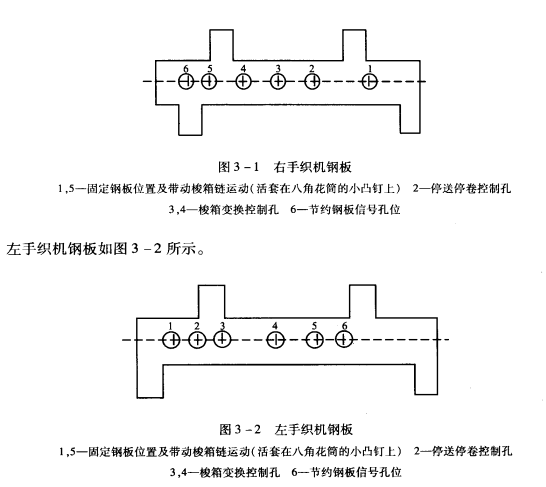

The function of the steel plate is to control the law of shuttle box transformation, so that the shuttle seat changes the position of the shuttle box cyclically according to the weft color matching of the fabric. In a single-sided multi-shuttle box, each steel plate controls 2 weft yarns, so the number of consecutive weft insertions for each weft yarn must be an even number. The steel plates are woven according to the color cycle of the weft yarns and connected to form a shuttle box chain. The rib box chain is hung on the octagonal On the flower tube, the octagonal flower tube is driven by the eccentric disk and connecting rod on the central axis. Therefore, the central axis rotates once, the main shaft rotates twice, and the octagonal flower tube turns over a steel plate. 1. Steel plate structure [steel plate controls the position of the shuttle box] The steel plate of the right-hand loom is shown in Figure 3-1.
